Scooter Spark Plug Replacement: 8 Fitment Checks
A scooter that is hard to start, misfires, or loses power may have a worn or fouled spark plug—but those symptoms can also come from fuel delivery, compression, ignition wiring, or another fault. Replacing the plug is useful only when the new part is correctly matched and installed.
This guide explains the fitment and installation checks to make before replacing a spark plug on a gasoline scooter, moped, small motorcycle, or ATV. It does not supply a universal plug number, gap, or torque value. Use the service manual for the exact engine and stop if its specifications are unavailable.
Do not choose a spark plug by engine size alone
A label such as “50 cc,” “125 cc,” or “GY6” is not enough to prove that a spark plug fits. Engines with similar displacement can use different cylinder heads, thread reach, seat styles, heat ranges, resistor designs, and electrode gaps.

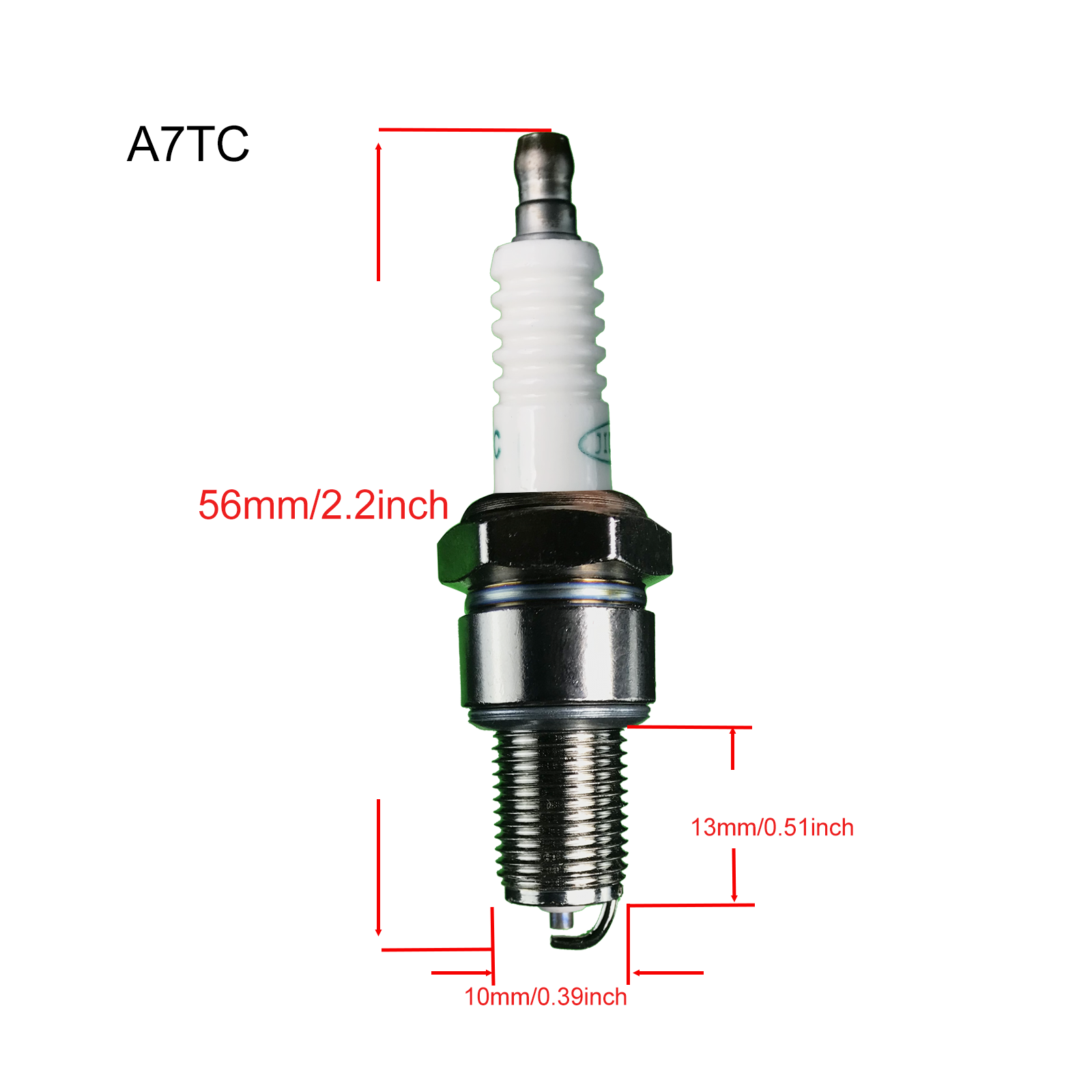

The current CUKUSIN three-piece spark plug listing offers separate A7TC, F7TC, and L7T selections. Its page associates the A7TC option with certain dirt bikes, mopeds, GY6 scooters, and ATVs, but that description is a starting point—not a replacement for checking the original plug code and engine manual.
1. Identify the exact engine and original plug
Before removing anything, record the vehicle make, model, year, engine code, displacement, and any modification that could affect ignition or compression. Find the service manual’s specified spark plug code, acceptable equivalent, electrode gap, and tightening torque.
If the installed plug is known to be correct, photograph its full code before discarding it. If the code differs from the manual, do not automatically copy the old plug; a previous owner may have installed the wrong part.
- Vehicle make, model, and year
- Engine code stamped on the crankcase or identification label
- Manual-specified plug number and approved equivalents
- Required electrode gap
- Required tightening torque and whether the value is for a new or reused plug
2. Compare all fitment dimensions and design features
A matching thread diameter is only one part of fitment. Compare the new plug with the manual specification and, when appropriate, a verified original plug.
- Thread diameter and pitch: the plug must enter the cylinder-head threads without force.
- Thread reach: a plug that extends too far can contact internal parts or collect deposits; one that is too short changes the firing position.
- Seat type: a gasket-seat and a tapered-seat plug use different sealing and tightening methods.
- Hex size: the correct socket must fit without damaging the insulator.
- Heat range: this controls how the firing end transfers heat; it is not a measure of spark energy.
- Resistor and terminal design: the plug cap must attach correctly and the electrical specification must match the ignition system.
- Electrode projection and construction: use the engine maker’s approved design.
- Specified gap: verify it for the exact engine rather than assuming a plug is ready to install.
NGK explains that the wrong heat range can contribute to fouling or overheating, and that plug torque affects heat transfer to the cylinder head. For that reason, a plug that merely screws into the hole is not necessarily compatible.
3. Decide whether the spark plug is actually the problem
Common plug-related symptoms can include hard starting, intermittent misfire, rough idle, or poor acceleration. None of these symptoms proves the plug is faulty. Check simple surrounding causes first:
- Loose, cracked, wet, or corroded plug cap and ignition lead
- Weak battery voltage where the ignition system depends on the battery
- Stale or contaminated fuel
- Incorrect choke use or an overly rich mixture
- Blocked air filter
- Fuel leak or carburetor problem
- Low compression or incorrect valve clearance
A new plug may temporarily improve a symptom without correcting the reason the old plug fouled. Repeated fouling, oil-wet deposits, a melted electrode, a cracked insulator, or metal damage calls for diagnosis rather than repeated plug replacement.
4. Make the scooter safe before removal
Work in a well-ventilated area away from flames, sparks, smoking, and hot exhaust parts. Support the scooter on stable, level ground. Turn the ignition off, remove the key, and use the service manual’s battery-isolation procedure when required.
Wait until the engine is cool. NGK specifically advises removing and installing plugs in a cool engine because hot metal expansion can contribute to thread damage.
- Keep fuel containers closed and away from the work area.
- Remove body panels only as the vehicle manual describes.
- Photograph hose, wire, and panel routing before moving anything.
- Pull on the plug-cap body, not the ignition wire.
- Never crank the engine with loose clothing or tools near moving parts.
5. Clean around the plug before loosening it
Dirt around the plug can fall into the cylinder after removal. Clean the surrounding area using a method approved for the vehicle. Do not push debris into the plug well, damage wiring, or direct flammable cleaner onto a hot engine.
Use the correct spark-plug socket and keep it aligned with the plug. If the plug will not loosen normally, stop. Excessive force can strip the cylinder head or break the plug. A qualified technician is less expensive than repairing damaged head threads.
6. Inspect the removed plug without over-diagnosing it
Keep the old plug identified with its cylinder if the engine has more than one. Look for a cracked insulator, damaged threads, missing gasket, eroded electrodes, heavy dry carbon, wet fuel, oil, or signs of overheating.
Operating conditions immediately before removal affect plug appearance. Long idling, repeated cold starts, choke use, and a short trip can darken a plug. Treat appearance as one diagnostic clue alongside compression, fuel mixture, ignition output, and the service manual—not as a stand-alone verdict.
7. Verify the electrode gap correctly
Do not assume the factory-set gap matches every engine that can accept the same plug part number. NGK notes that one plug number can serve many applications and recommends checking the gap against the vehicle manufacturer’s specification.
- Confirm the manual’s gap value and unit of measurement.
- Use a calibrated gauge suitable for the electrode design.
- If adjustment is permitted, move only the ground electrode using the correct tool.
- Do not pry against the center electrode or ceramic insulator.
- Replace a plug that was dropped or has a cracked insulator.
Fine-wire and precious-metal plugs can be damaged by careless gapping. If the plug manufacturer says the design should not be adjusted, use the correct pre-gapped part instead.
8. Hand-start the threads and use the specified torque
With the plug hole clean and the engine cool, start the plug by hand. It should turn smoothly for several threads. If it binds, remove it and check alignment, thread condition, and part fitment. Never use a ratchet to force a cross-threaded plug into an aluminum cylinder head.
Tighten to the engine or plug manufacturer’s exact specification with a calibrated torque wrench whenever possible. The correct value depends on thread diameter, seat type, cylinder-head material, plug condition, and whether the threads are dry or treated. Do not copy a torque value from an unrelated engine.
NGK warns that both insufficient and excessive torque can interfere with heat transfer and cause damage. Do not add anti-seize or another thread lubricant unless the applicable manufacturer explicitly instructs you to do so, because lubrication changes the relationship between applied torque and clamping force.
Reconnect and perform a controlled test
Push the plug cap into place until it is fully seated, then restore wiring, hoses, and body panels to their documented routing. Confirm nothing touches the exhaust, steering, suspension, wheel, or another moving part.
- Move the scooter outdoors before starting.
- Confirm the transmission and stand arrangement required by the manual.
- Start without excessive cranking.
- Listen for a steady idle and check for warning lights or fuel leaks.
- After a short controlled test, stop the engine and recheck the plug-cap connection.
If the original symptom remains, avoid repeatedly replacing parts. Continue with the manual’s diagnostic sequence or use a qualified motorcycle technician.
Scooter spark plug replacement checklist
- Vehicle and engine code recorded
- Manual-specified plug code confirmed
- Thread, reach, seat, heat range, resistor, and terminal verified
- Correct gap and torque specifications available
- Engine cool and ignition safely disabled
- Area around plug cleaned before removal
- Old plug inspected and underlying cause considered
- New gap measured without damaging electrodes
- Plug threaded by hand and torqued correctly
- Cap, wiring, hoses, and panels restored safely
- Outdoor start and short controlled test completed
Frequently asked questions
Does every GY6 scooter use an A7TC plug?
No. “GY6” and engine displacement alone do not prove spark-plug fitment. Confirm the exact engine code, manual specification, original plug, dimensions, heat range, and gap.
Can I install a plug straight from the box?
Inspect it and verify the gap first. Factory gap may not match every engine associated with that plug number, and shipping damage is possible.
Should I replace an ignition coil at the same time?
Not without evidence. Inspect the cap and lead and follow the manual’s ignition tests. A misfire can have several causes, and replacing multiple parts at once makes diagnosis harder.
What if the plug starts crooked?
Stop immediately. Remove it without force and inspect the plug and cylinder-head threads. Cross-thread damage in an aluminum head should be evaluated by a qualified technician.
Sources and further reading: NGK Spark Plugs installation guidance; NGK guidance on checking and setting plug gap; NGK Spark Plug Basics; the service and parts manuals supplied for your exact scooter and engine.
