Recoil Starter Rope Slips or Will Not Return
A recoil starter can fail in several very different ways. The rope may pull without turning the engine, stop before it reaches normal travel, retract only halfway, snap back violently, or remain extended. Replacing the rope alone will not fix a worn ratchet, cracked pulley, jammed engine, misaligned housing, or damaged return spring.
This guide helps separate those conditions before parts are ordered. Recoil starters store energy in a wound spring, and some engine makers prohibit disassembly of particular starter assemblies. Follow the service manual for the exact engine and replace the complete assembly or use a qualified technician when safe internal service instructions are unavailable.

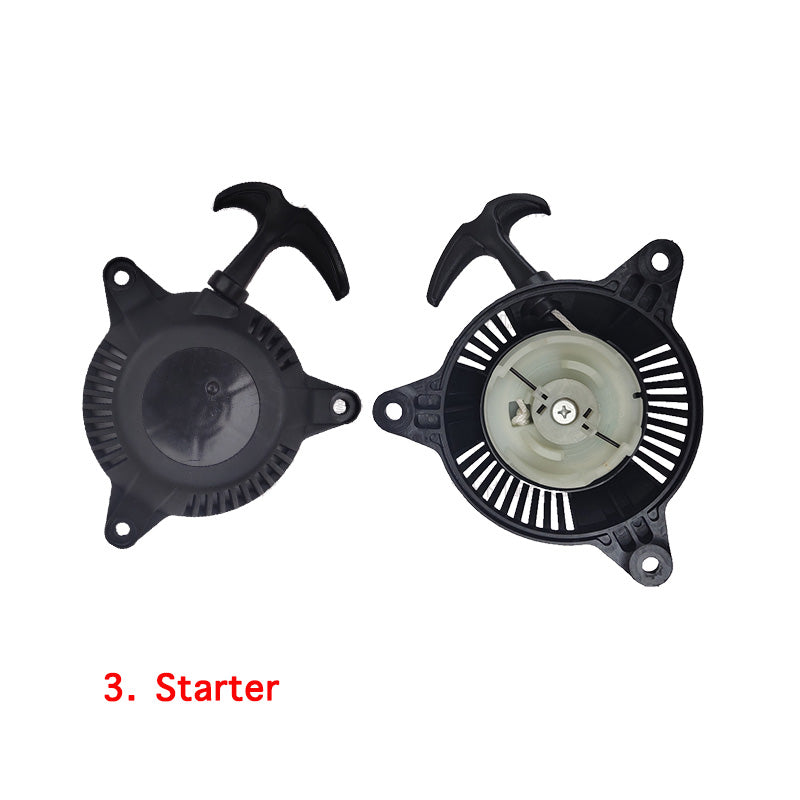

CUKUSIN fitment note: the current CUKUSIN 144F parts page offers a selectable “3. Starter” variant for the CUKUSIN 144F 4 HP four-stroke outboard. A separate 144F/145F starter and shell listing is also active. Neither should be treated as a universal pull starter for another outboard, scooter, motorcycle, or small engine.
Recoil starter symptom guide
| What the starter does | Likely inspection area | Important distinction |
|---|---|---|
| Rope pulls and retracts normally while the engine turns | Starting procedure, fuel, spark, compression, and safety circuits | The recoil starter may be doing its job even though the engine does not start |
| Rope pulls with unusually little resistance and the engine does not turn | Pawls or ratchets, ratchet springs, drive cup, pulley, and housing alignment | This is an engagement problem, not automatically a broken return spring |
| Rope remains out or retracts only partway | Return spring, pulley binding, rope routing, contamination, housing damage, and preload | Adding more spring tension can hide binding and overload the spring |
| Rope is locked or much harder to pull than normal | Starter jam, engine rotation, cylinder flooding, oil level, output load, and internal damage | Do not force the rope until the starter and engine are distinguished |
| Starter grinds or stays engaged after the engine starts | Pawl retraction, center fastener, drive cup, debris, housing position, and broken parts | Stop immediately to prevent flywheel and starter damage |
| Handle kicks back or is pulled from the hand | Starting technique, ignition timing, flywheel key, valve condition, and mechanical fault | Repeated pulling can injure the operator and worsen damage |
1. Stop pulling and record the exact failure
Do not keep yanking a starter that has changed feel or sound. Note how far the rope travels, whether the engine or flywheel turns, whether the rope returns fully, and whether the fault happens cold, hot, or only after an unsuccessful starting attempt. Photograph the rope exit, mounting bolts, housing gap, and any loose pieces.
A rope that pulls normally while the crankshaft turns is different from one that pulls freely while the pulley fails to engage the engine. The first condition points beyond the starter; the second points toward the engagement mechanism.
2. Make the engine safe before inspection
Move to a stable, well-ventilated work area. Stop the engine, remove the key or cut-off link, close or disconnect the fuel supply as the manual directs, and let hot components cool. Disconnect the spark-plug lead and secure it away from the plug. Disconnect battery ground first if the engine has electric-start equipment and the manual requires it.
Keep the propeller or other driven tool clear, and secure a portable outboard on a rated stand or sound transom. Wear eye protection and gloves. A recoil spring can unwind suddenly, and sharp rope fibers, spring edges, or broken plastic can cause injury.
3. Inspect the rope and housing from the outside
Before removing anything, check:
- Rope fraying, flattening, glazing, knots, melted fibers, or a damaged handle
- A rope rubbing the eyelet or exiting at an abnormal angle
- Cracks, dents, missing fasteners, or uneven gaps around the starter housing
- Debris, salt deposits, corrosion, or a foreign object near the pulley opening
- A loose mounting point or housing that shifts when the rope is pulled gently
Honda's GX100 service manual says to replace a frayed or worn starter rope and, for that design, not to disassemble the recoil starter assembly. That warning is model-specific, but it illustrates why opening an unfamiliar spring housing without service instructions is unsafe.
4. Distinguish a jammed starter from a jammed engine
A hard or locked rope does not prove the recoil unit is defective. The crankshaft may be difficult to turn because of excess liquid in the cylinder, incorrect oil level, a seized component, abnormal compression, a loaded output system, or internal damage.
Do not remove the spark plug, turn the flywheel, or separate the starter merely to “see what happens” unless the exact manual supplies a safe diagnostic sequence. Fuel or oil can be expelled from a plug hole, exposed flywheel parts can move, and removing the starter may eliminate normal guarding. If the source of resistance is uncertain, stop and use a qualified technician.
5. Check whether the ratchets or pawls engage
In many recoil systems, pulling the rope rotates a pulley and extends small pawls or ratchets into a matching drive cup on the flywheel. When the handle is released, the pawls must retract and the spring rewinds the rope.
Honda's GP160/GP200 inspection procedure tells technicians to confirm that the ratchet ends move out of their guide when the starter knob is pulled and to inspect the pulley openings for deformation. Husqvarna similarly identifies poor engagement between the pulley, starter pawl, and crankshaft as a reason a cord can feel loose without turning the engine.
With the starter removed only as the correct manual permits, look for chipped or rounded pawl tips, weak or missing pawl springs, a cracked or distorted pulley, a worn drive cup, loose center hardware, and rub marks showing that the housing is off-center. Do not lubricate friction surfaces or plastic parts unless the manufacturer names the lubricant and location.
6. Diagnose a rope that will not return
A non-returning rope may result from a broken or detached return spring, a pulley that binds against the housing, crossed or swollen rope, too much rope on the pulley, incorrect winding direction, debris, or a handle knot trapped at the eyelet.
Do not add turns blindly. Excessive preload can prevent full rope extension, overload the spring, or cause the handle to strike the housing. Too little preload can leave slack. Rope length, diameter, construction, winding direction, and spring turns are all model-specific.
Husqvarna publishes a rope-replacement procedure for certain chainsaws, but its winding count and direction belong to those products. They are not specifications for a CUKUSIN starter. Use the CUKUSIN manual or obtain written service instructions for the exact 144F or 145F unit.
7. Decide whether to replace the rope or complete assembly
Rope-only service is reasonable only when the housing, pulley, spring, pawls, drive cup, fasteners, and mounting points are serviceable and the manufacturer permits internal repair. Replace the complete starter when the spring is broken or uncontained, the pulley or housing is cracked, engagement parts are badly worn, internal instructions are unavailable, or several parts are damaged.
Before ordering from CUKUSIN, record:
- Engine label showing 144F or 145F, plus the serial number
- Starter housing color and shape
- Mounting-hole count, spacing, and orientation
- Center offset, rope-exit direction, and available cover clearance
- Pawl or ratchet design and mating drive-cup condition
- Whether the order must include the starter only, shell only, both pieces, or fasteners
The 144F parts page currently lists the starter and cover/shell as separate variants, while the 144F/145F page has one combined product title and a single photograph. Confirm the required selection and package contents with CUKUSIN support instead of ordering from the image alone.
8. Install without trapping wires or forcing alignment
Clean the mounting surface and compare the replacement with the removed assembly. Route the rope, stop-switch wire, ignition lead, and any grommets exactly as documented. The starter should seat flat without being drawn into position by tightening bolts against interference.
Use the specified fastener condition, tightening sequence, and torque. Do not substitute longer bolts that could contact the flywheel. Rotate or test only by the manual's safe method before reconnecting ignition and fuel. If the starter rubs, binds, or fails to engage consistently, remove it and find the alignment or fitment problem.
9. Test retraction, engagement, and release before starting
With starting still disabled, pull the handle slowly through short strokes. Confirm smooth extension, positive engagement, full return, and a handle that seats without slamming. Then follow the manual's complete pre-start procedure and test outdoors with the engine securely mounted and the propulsion area clear.
After starting, the starter must disengage immediately. Stop for grinding, rubbing, loose hardware, an oscillating housing, incomplete retraction, or a rope that contacts hot or moving parts. Recheck fasteners and routing after the first controlled test.
Recoil starter inspection checklist
- Exact symptom and operating condition recorded
- Engine secured, fuel isolated, ignition disabled, and battery disconnected if applicable
- Rope, handle, eyelet, housing, and mounting bolts inspected externally
- Starter jam distinguished from engine or output-system resistance
- Pawls or ratchets, springs, pulley, drive cup, and alignment checked by the manual
- Correct model, serial number, dimensions, starter selection, and package contents confirmed
- No unsupported spring preload, rope size, lubricant, or torque value copied from another engine
- Full return and immediate disengagement verified before normal use
Sources and further reading: the current CUKUSIN 144F replacement-parts catalog and 144F/145F starter and shell listing; the official Honda GP160/GP200 and GX100 shop manuals; and Husqvarna's official guidance on starter engagement and starter-rope replacement.
Prepared with AI assistance and checked against current CUKUSIN product data and cited public sources. Always follow the manual supplied with your exact model.
