Electrical Inspection After a Motorcycle Part Repair
A replacement part can appear to work in the garage while leaving a pinched wire, loose battery terminal, oversized fuse, misrouted harness, failed brake-light switch, or disabled safety interlock. Those faults may show up only when the handlebar turns, suspension moves, vibration begins, or electrical load increases.

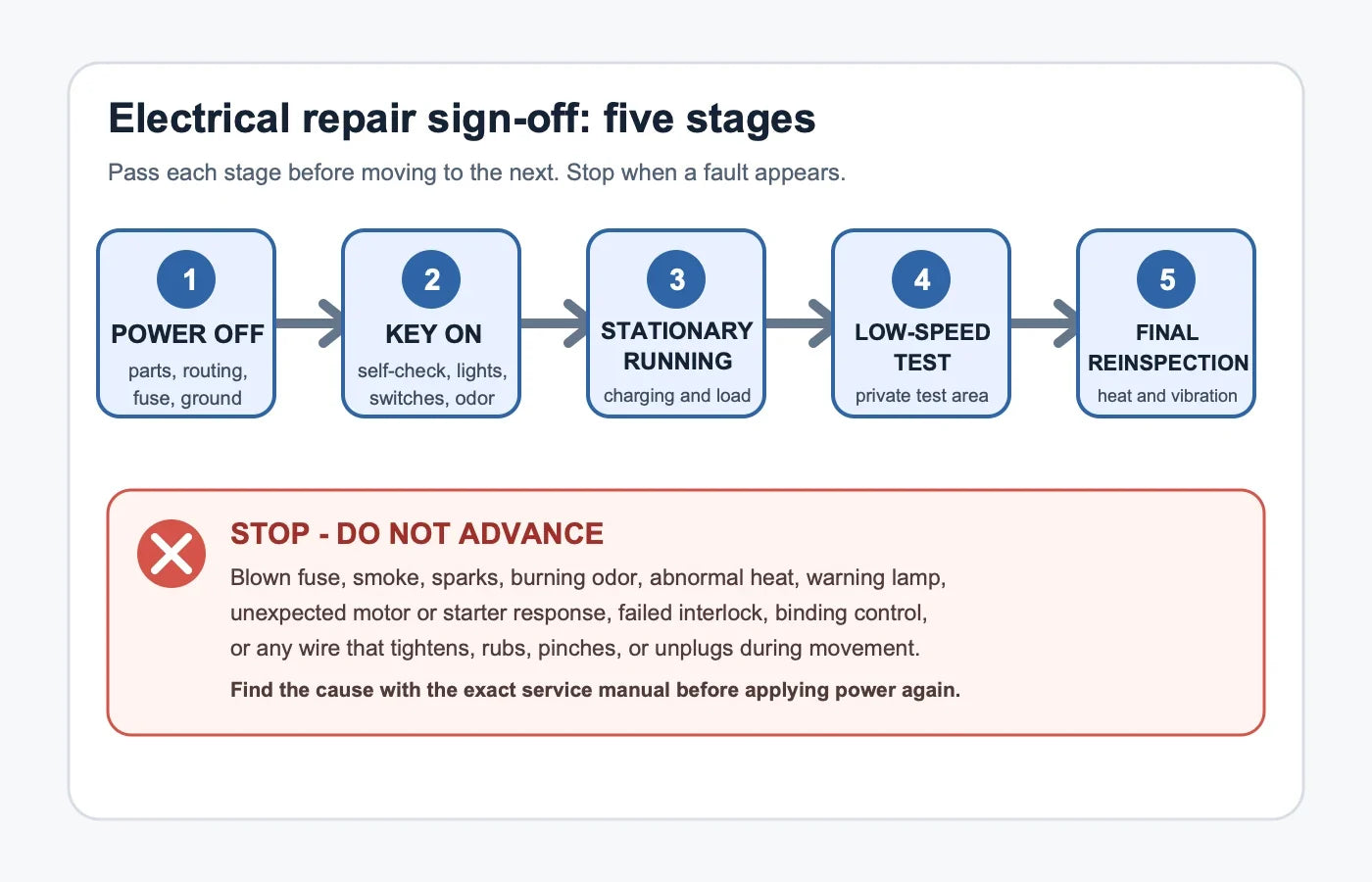

Use this staged pre-ride electrical inspection after replacing a motorcycle or scooter part. Complete the power-off inspection first, then the key-on checks, stationary running checks, controlled low-speed test, and final reinspection. Follow the service manual for the exact model at every stage.
CUKUSIN catalog note: CUKUSIN does not currently have an in-stock motorcycle or scooter electrical product used in this article. The guide is educational and does not claim that a CUKUSIN component fits your vehicle.
1. Confirm the repair before reconnecting power
Record the model, year, VIN, engine or controller code, original part number, replacement part number, and exact wiring diagram revision. Confirm the replacement's voltage, current rating, signal type, connector, pinout, polarity, mounting ground, and environmental rating.
Compare your work with before-disassembly photographs. Account for every fastener, clip, seal, grommet, washer, tool, and removed trim piece. Do not reconnect power if a connector, wire, ground strap, fuse cover, battery hold-down, or safety device remains unexplained.
2. Inspect the battery and main protection
Use the manual's isolation and reconnection sequence. For a conventional low-voltage motorcycle system, verify correct battery type and polarity, clean and secure terminals, an intact hold-down, protected positive terminal, and a properly routed vent tube where fitted.
Confirm that every fuse has the specified type and rating. Never replace a blown fuse with a larger one, foil, wire, or another improvised conductor. A repeated failure means the circuit, load, or installation must be diagnosed.
For an electric scooter or other micromobility device, do not open, repack, probe, or repair the traction battery unless you are trained and the manufacturer supplies an approved procedure. The CPSC advises using only battery packs and chargers confirmed suitable by the device manufacturer and warns against packs modified or reworked by unqualified personnel.
3. Check grounds, connectors, and seals
Inspect every connector disturbed during the job. The halves should be fully seated, secondary locks engaged, terminals level, seals correctly positioned, and strain relief intact. Look for backed-out pins, bent terminals, corrosion, water, overheated plastic, loose crimps, exposed copper, and insulation pierced by test probes.
Confirm ground points are clean, correctly located, and tightened to the manual. Do not add a ground to a painted surface or move a sensor ground to a convenient chassis bolt without an approved diagram. Shared or high-resistance grounds can create misleading faults across lights, sensors, and controls.
4. Sweep the steering and suspension before power-on
Turn the handlebar slowly from lock to lock while watching the harness, cables, hoses, and connectors. Nothing should tighten, unplug, rub, fold sharply, or become trapped between the fork, frame, steering stop, body panel, or accessory bracket.
Where it can be done safely, inspect routing through the normal suspension and stand movement. Preserve service loops and manufacturer clips. Keep wiring away from exhaust heat, sharp edges, belts, chains, tires, fans, and pinch points.
The Motorcycle Safety Foundation's T-CLOCS checklist specifically calls for wiring that is free of fraying, chafing, pinching, and interference at the steering head or suspension, with connectors, looms, and ties secure.
5. Perform a key-on, engine-off check
Move the vehicle outdoors or to the safe location specified by the manual. Keep it stable with the driven wheel unable to move the vehicle unexpectedly. Reconnect low-voltage power only after the visual inspection passes.
Turn the key on without starting. Watch for smoke, sparks, odor, rapidly warming wires, clicking relays, dimming, an unexpected motor response, or a blown fuse. Confirm the instrument panel completes its normal self-check and that warning lamps or diagnostic messages behave as the manual describes.
Switch off immediately for abnormal heat, burning odor, smoke, hissing, swelling, melted insulation, a battery warning, or an unintended throttle or starter response. Do not continue cycling power to “see if it clears.”
6. Test every light and switch independently
| Circuit | What to verify |
|---|---|
| Headlamp | Low and high beam, indicator, mounting, lens, dust cap, aim, and no flicker through steering travel |
| Tail and license lamps | Correct steady operation, secure lenses, and visible plate illumination where required |
| Brake lamp | Activates separately from the front control and rear control, then turns off completely |
| Turn signals | Front and rear, left and right, dash indicator, hazard function if fitted, and normal flash behavior |
| Horn | Immediate, consistent operation without display reset or major lamp dimming |
| Controls and switches | Engine cut-off, starter, beam, signal cancel, mode controls, and required interlocks |
MSF and NHTSA both include headlights and signal indicators in pre-ride checks. MSF also calls for both brake controls to activate the brake lamp. If lighting equipment was changed, verify its mounting and aim plus all applicable federal, state, and local requirements. FMVSS No. 108 governs original and replacement road-lighting equipment at the federal level; state rules govern vehicle operation and may add requirements.
7. Verify controls and safety interlocks
Electrical work near the handlebar, brake lever, throttle, stand, or controller can affect mechanical control and safety inputs. Confirm:
- The throttle moves freely and snaps closed at center and both steering locks.
- Front and rear brake controls move normally and are not held on by a switch adjustment.
- The engine cut-off switch stops the engine using the manual's test.
- Side-stand, neutral, clutch, brake-to-start, and tip-over interlocks operate exactly as designed.
- ABS, traction-control, battery, charging, and engine warning indicators complete their normal checks.
Never bypass an interlock to make a replacement part operate. A jumper that defeats a brake, side-stand, neutral, throttle, or battery-safety input can allow unexpected movement or hide a dangerous fault.
8. Run a stationary electrical test
Start the engine only outdoors using the normal procedure, or power the electric drive system in the manufacturer's safe service state. Keep the vehicle stable and stay clear of the driven wheel.
Measure charging or supply voltage only at the approved test points with a correctly rated meter. Use the model-specific range and test conditions; do not apply generic motorcycle values to a lithium traction system or a different regulator design.
Operate one circuit at a time, then normal combinations such as headlamp plus brake lamp and turn signal. Watch for flicker, resets, warning lamps, abnormal relay chatter, hot connectors, fuse heating, or rpm changes. Do not pierce sealed wiring or back-probe a connector unless the service procedure allows it.
9. Conduct a controlled low-speed test
Do not enter traffic immediately. Wear full protective gear and use a private, open, low-speed area permitted for testing. Check smooth throttle response, brakes, steering, indicators, horn, displays, and power delivery. Begin with gentle inputs and stop at the first unexpected response.
For a changed light, use a stationary observer to confirm visibility and meaning from front, rear, and side angles. For a replaced brake switch, verify that the lamp turns on before or as braking begins and turns off when the control is released, following the model's specification.
10. Reinspect after heat and vibration
Park safely, switch off, isolate power as required, and allow hot parts to cool. Recheck battery retention, terminals, fuse holder, grounds, connectors, clips, cable free play, harness clearance, fasteners, and nearby panels. Look for fresh rub marks, movement, water-entry paths, heat discoloration, odor, or a connector that is warmer than comparable circuits.
Do not sign off the repair until the normal pre-ride inspection also passes. The MSF T-CLOCS system includes tires and wheels, controls, lights and electrics, oil and other fluids, chassis, and stands—not just the part that was replaced.
Stop and use a qualified technician when
- The wiring diagram, pinout, voltage, polarity, or part compatibility is uncertain
- A fuse blows again or a conductor, terminal, battery, controller, or connector heats abnormally
- The throttle, brake, steering, side stand, or safety interlock behaves incorrectly
- A traction battery is swollen, damaged, leaking, hissing, unusually hot, or has been modified
- ABS, charging, engine, battery, or controller warnings remain active
- A required lamp, horn, brake switch, or cut-off switch does not work normally
For more installation and maintenance topics, browse the CUKUSIN Motor's Blogs.
Sources and further reading: the Motorcycle Safety Foundation T-CLOCS pre-ride checklist; NHTSA's motorcycle safety guidance; the CPSC micromobility safety center; and 49 CFR 571.108, FMVSS No. 108.
