Install a 4-Stroke Outboard: Pre-Launch Checklist

Installing a small four-stroke outboard is not difficult, but it should never be treated as a “clamp it on and go” job. The motor must match the boat, sit at the correct height, remain secure under thrust, and be prepared with the correct fluids before the first start.

This guide gives owners of portable dinghies, Jon boats, skiffs, inflatables, canoes, and similar small craft a practical pre-launch sequence. It is general guidance, not a substitute for the manuals and capacity information supplied with your exact boat and engine.

Quick rule: if the transom is cracked, soft, repaired but unverified, unusually thin, or not rated for the motor’s horsepower and weight, stop before mounting the engine and have the boat inspected.

1. Confirm the boat and motor are a safe match

Start with the boat’s capacity plate and owner’s manual. Confirm the maximum horsepower, engine weight, passenger load, and intended mounting position. A motor that physically fits the transom can still be too powerful or too heavy for the hull.

• Do not exceed the boat manufacturer’s maximum horsepower or weight limit.
• Include fuel, battery, passengers, gear, and any mounting hardware when thinking about total load and balance.
• Inspect both sides of the transom for cracks, softness, crushed material, loose laminate, corrosion, or previous repairs.
• Verify that the clamp pads will land on a flat, strong section of the transom.

The U.S. Coast Guard’s boatbuilding guidance places the outboard in the lowest practical vertical position on the transom unless the boat manufacturer provides a different mounting instruction. Always follow the instructions for the actual hull and motor in front of you.

2. Check shaft length and mounting height

Shaft length and transom height must work together. If the motor sits too high, the propeller can ventilate and lose thrust. If it sits unnecessarily low, drag and spray increase and handling can suffer.

1. Place the unloaded boat on level ground or a stable trailer.
2. Measure the transom at the intended motor centerline.
3. Compare that measurement with the shaft specification in the engine manual.
4. After mounting, confirm the lower unit and anti-ventilation plate position using the boat and engine manufacturers’ instructions.

Do not use a universal “one measurement fits every hull” rule. Bottom shape, bracket design, setback, inflatable transoms, and manufacturer tolerances can change the correct position.

3. Center the outboard and secure the clamps

With the boat supported so it cannot roll or tip, lift the engine using the approved lifting points. Small engines are portable, but their shape makes them awkward. Use a second person if you cannot keep the motor controlled throughout the lift.

1. Set the motor on the transom centerline unless the boat manual specifies an offset.
2. Seat the mounting bracket fully against the transom.
3. Tighten both clamp screws evenly so the bracket stays square.
4. Use the locking method, through-bolts, backing plate, or secondary restraint specified by the manufacturer.
5. Recheck steering movement and tilt clearance before launching.

Clamp screws alone should never be assumed to be a complete retention system for every boat. If your manual calls for bolts or a safety cable, install them before use. Do not drill an inflatable or composite transom unless the boat manufacturer approves the location and sealing method.

4. Fit the kill-switch lanyard correctly

Connect the engine-stop lanyard to the operator before starting. Route it so it can pull free if the operator moves away from the controls, but not so tightly that normal steering disconnects it.

• Clip the lanyard to a strong point on the operator, not to a loose bag or removable cushion.
• With the motor secured and the propeller area clear, test that removing the clip stops the engine as described in the manual.
• Replace a stretched, cracked, or unreliable lanyard before the next trip.

CUKUSIN offers a replacement outboard safety lanyard, but compatibility must be confirmed from the connector shape and your engine documentation before ordering.

5. Add fuel and four-stroke engine oil to separate systems

A four-stroke engine normally keeps gasoline and crankcase oil in separate containers. Do not mix two-stroke oil into the gasoline unless the manual for your exact model explicitly says to do so.

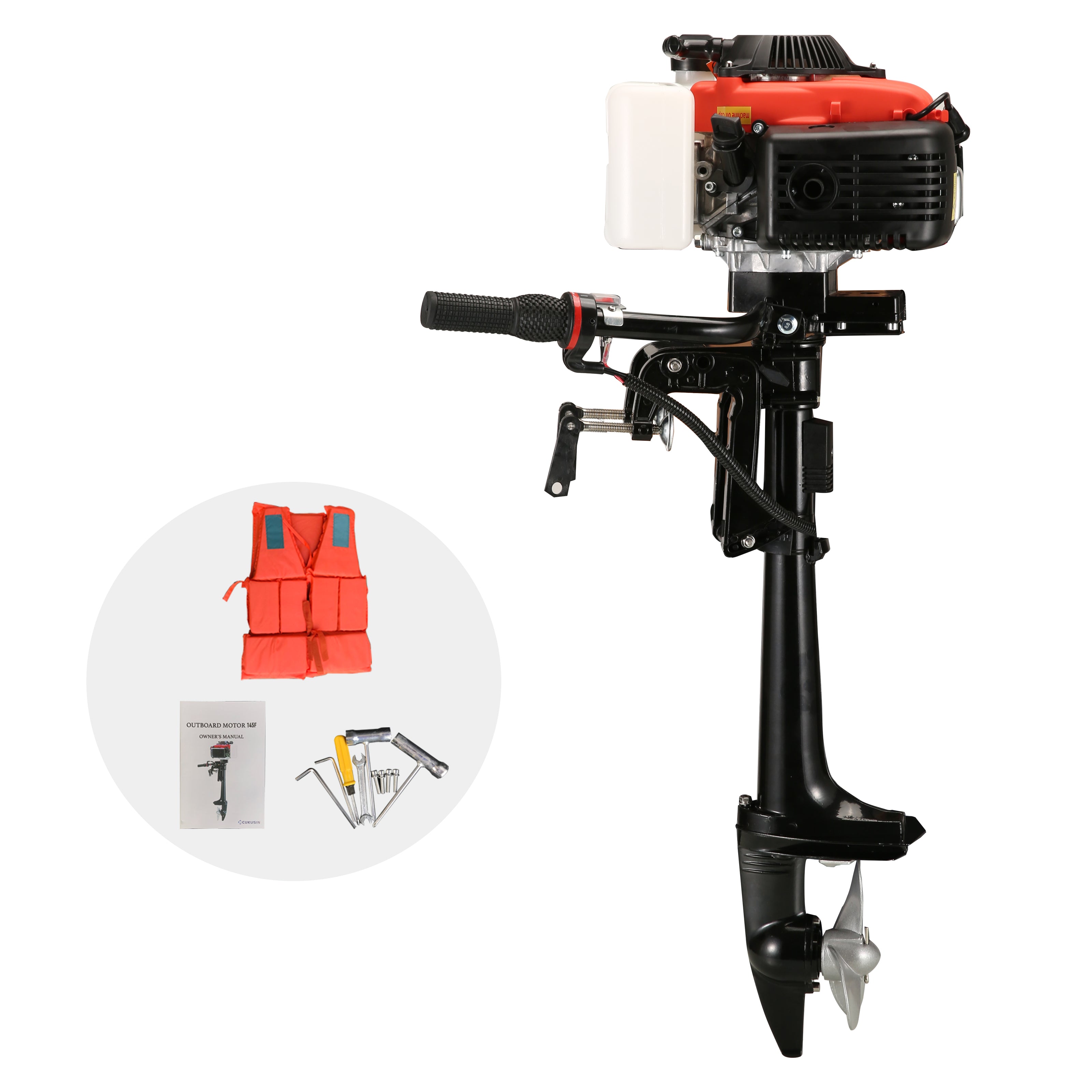

For the current CUKUSIN 4 Stroke 4HP Short-Shaft Outboard Motor listing, CUKUSIN states that the gearbox is supplied with gear oil and that engine oil should not exceed 240 ml. Product specifications can change, so confirm the label, packing documents, dipstick procedure, and manual supplied with your unit before filling or draining anything.

• Use the fuel grade and four-stroke engine oil specified for the engine.
• Measure oil on level ground using the manual’s checking procedure.
• Do not overfill. Excess oil can aerate, leak, foul the intake, or cause poor running.
• Inspect the fuel cap, tank, hoses, primer, and connections for leaks before starting.
• Handle gasoline outdoors, away from flames, sparks, and hot surfaces.

6. Inspect the propeller area before the first start

Remove the emergency-stop clip or otherwise disable ignition according to the manual before touching the propeller. Confirm that the propeller is the specified size, the retaining hardware is present, and no packing material remains around the shaft or lower unit.

• Keep people, ropes, clothing, and tools away from the propeller.
• Check that the motor can tilt and steer without striking the hull.
• Inspect the propeller for cracks, bends, or shipping damage.
• If a guard is installed, verify the required blade clearance and fastener torque.

A propeller guard can reduce certain contact risks but does not make a rotating propeller safe. If a guard is appropriate for your setup, review the CUKUSIN propeller protection shade and confirm fitment before purchase.

7. Perform a controlled pre-start check

Move the boat outdoors into a clear, well-ventilated area. Carbon monoxide can accumulate quickly in garages, sheds, under covers, and near enclosed cabins.

1. Confirm the motor is securely mounted and the boat cannot move unexpectedly.
2. Set the controls exactly as the manual specifies for starting.
3. Confirm the stop switch is installed and the lanyard is attached to the operator.
4. Verify the throttle is at the start position and the drive system is in the required state.
5. Keep every person clear of the propeller and exhaust.
6. Start only for the duration and under the cooling conditions allowed by the manual.

“Air-cooled” describes engine cooling, not permission to ignore the lower unit, exhaust, gearbox, propeller, or the manual’s test procedure. Never improvise a dry-running test.

8. Complete a dockside and low-speed test

The first water test should be short, controlled, and close to the launch point. Carry the required safety equipment and follow local boating rules.

• Start at idle and listen for abnormal knocking, scraping, or rattling.
• Check for fuel or oil leaks.
• Confirm the stop switch works.
• Verify smooth steering through the intended range.
• Apply power gradually while watching for excessive vibration, ventilation, spray, or bracket movement.
• Return to shore immediately if the clamps loosen or the transom flexes.

After the first short run, shut the engine down, remove the stop clip, and recheck the clamps, secondary restraint, propeller hardware, fluid levels, and transom. Follow the engine manual’s break-in schedule rather than operating at one speed for an extended period.

Common installation mistakes to avoid

• Choosing a motor by horsepower alone and ignoring engine weight.
• Mounting on a damaged or under-rated transom.
• Guessing shaft length without measuring the actual boat.
• Tightening one clamp completely before the other.
• Skipping the secondary restraint or required through-bolts.
• Mixing oil into four-stroke gasoline.
• Overfilling the crankcase.
• Starting in an enclosed area or with people near the propeller.
• Running at high throttle before confirming mounting and steering behavior.

Small four-stroke outboard installation checklist

• Boat capacity and motor weight verified
• Transom sound and mounting area flat
• Shaft length and mounting height confirmed
• Clamps tightened evenly
• Required bolts or secondary restraint installed
• Steering and tilt clearances checked
• Kill-switch lanyard connected and tested
• Correct fuel and separate four-stroke oil added
• No fuel or oil leaks
• Propeller area clear and hardware secure
• Low-speed dock test completed
• Mount and transom rechecked after the first run

Frequently asked questions

Can I install a portable outboard by myself?

Only if you can lift and control the motor safely while keeping the boat stable. Use a second person or a suitable lifting aid when the engine is awkward, heavy, or difficult to align.

Should the propeller be in the water when testing?

Use only the starting and test procedure in the engine manual. Cooling architecture varies, and the words “air-cooled” do not remove every lower-unit, exhaust, or safety requirement.

Do I mix oil with gasoline in a four-stroke outboard?

Normally no. A four-stroke engine uses separate gasoline and crankcase-oil systems. Follow the exact manual and labels for your motor.

How often should I recheck the mounting clamps?

Check them before every outing and again after the first short run following installation. Also inspect them after trailering, an impact, unusual vibration, or any transom repair.

Sources and further reading: U.S. Coast Guard Boatbuilder’s Handbook, Outboard Motors; the owner’s manuals and capacity information supplied with your boat and exact engine.
